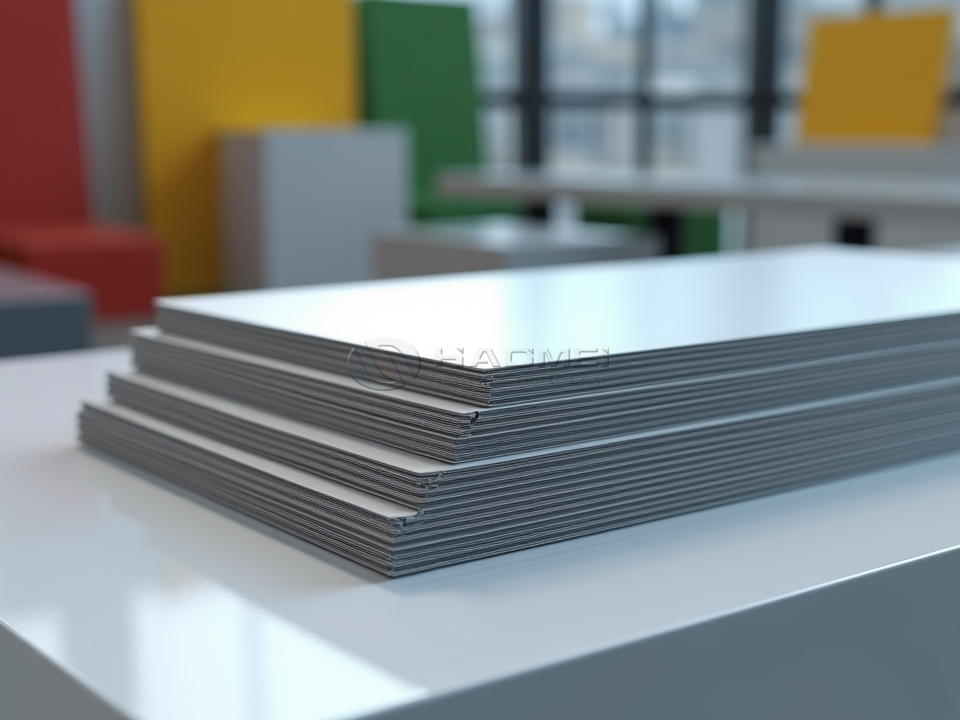

Custom Color Coated Aluminum Plate
Custom color coated aluminum plate is a pre-painted aluminum product engineered for projects that require dependable corrosion resistance, consistent color, clean forming performance, and low structural weight. It combines an aluminum substrate with a conversion layer, primer, and finish coating applied under controlled coil-coating conditions. The result is a ready-to-fabricate material that minimizes post-painting work while delivering an attractive, long-lasting surface.
Available in solid colors, metallic tones, matte finishes, high-gloss finishes, wood grain, marble patterns, and custom color matching, this material supports both practical and decorative design requirements. It is widely selected for curtain walls, roofing, ceilings, signage, transport panels, appliance shells, and aluminum composite panel production.
Material Structure and Performance
A custom color coated aluminum plate uses a multi-layer coating system rather than a simple painted surface. Surface pretreatment improves coating adhesion and corrosion protection. Primer creates a stable bonding layer, while the topcoat supplies color, weatherability, stain resistance, and visual texture. A back coat can be added to improve protection on the reverse side.
| Layer | Typical Function | Common Options |
|---|---|---|
| Protective film | Reduces scratches during handling and fabrication | PE film, laser film, no film |
| Topcoat | Provides color, gloss, weather resistance, and appearance | PE, HDPE, SMP, PVDF, FEVE |
| Primer | Enhances adhesion and barrier protection | Epoxy primer, polyester primer |
| Chemical pretreatment | Improves corrosion resistance and coating bond | Chrome-free conversion coating, chromate treatment |
| Aluminum substrate | Provides low weight, formability, and durability | 1050, 1060, 1100, 3003, 3004, 3105, 5005 |
| Back coat | Protects the reverse surface | Polyester back coat, service coating |
Compared with steel-based painted panels, aluminum offers a favorable strength-to-weight ratio and does not rust in the conventional ferrous-metal sense. Its natural oxide film, combined with a properly selected coating, supports long service life in humid, coastal, urban, and industrial environments.
Coating Choices for Custom Projects
The coating chemistry should match the project environment, expected life cycle, color requirement, and budget. PE is commonly used for indoor products and general-use cladding. PVDF is preferred where long-term outdoor weather exposure, ultraviolet resistance, and color retention are critical.
| Coating System | Typical Dry Film Thickness | Suitable Environment | Performance Characteristics |
|---|---|---|---|
| PE polyester | 15-25 μm | Interior panels, signage, general exterior use | Economical, flexible, broad color range |
| HDPE | 18-30 μm | Roofing, wall panels, moderate outdoor exposure | Improved hardness and weather resistance |
| SMP | 20-35 μm | Industrial roofing and building envelopes | Good abrasion resistance and heat stability |
| PVDF | 25-35 μm | Curtain walls, premium facades, coastal projects | Excellent UV resistance, chalking resistance, color durability |
| FEVE | 25-40 μm | High-end exterior architectural surfaces | Strong gloss retention and weatherability |
| Powder coating | 40-80 μm | Fabricated panels, frames, equipment housings | Thick, durable finish with low VOC potential |
For demanding external architecture, a PVDF Coated Aluminum Sheet finish is often specified because it maintains appearance under sunlight, rainfall, airborne contaminants, and wide temperature changes.
Technical Specifications
Custom color coated aluminum plate can be supplied as coils, slit strips, flat sheets, embossed panels, or cut-to-length plates. Dimensions, alloy, temper, coating thickness, surface texture, and packaging can be adjusted for the fabrication route.
| Parameter | Standard Supply Range | Custom Capability |
|---|---|---|
| Alloy | 1050, 1060, 1100, 3003, 3004, 3105, 5005 | Other alloys subject to application review |
| Temper | H14, H16, H18, H19, H24, H26, H32, H34 | Selected according to bending and strength needs |
| Thickness | 0.20-3.00 mm | Up to 6.00 mm for selected plate formats |
| Width | 200-1,600 mm | Slitting and special widths available |
| Sheet length | 500-6,000 mm | Cut-to-length production available |
| Coil inner diameter | 405 mm, 508 mm, 610 mm | According to processing equipment |
| Coil weight | 1-8 tonnes | Adjusted for handling and transport needs |
| Front coating thickness | 15-40 μm | Multi-coat systems available |
| Back coating thickness | 5-10 μm | Higher thickness for special service conditions |
| Gloss | 5-90 GU at 60° | Matte, satin, semi-gloss, high gloss |
| Color tolerance | Subject to agreed color standard | RAL, Pantone, physical sample matching |
| Surface finish | Smooth, orange peel, brushed, embossed, printed | Wood, stone, marble, metallic, textured patterns |
Typical Chemical Composition
Alloy selection affects strength, forming response, corrosion behavior, and panel flatness. The values shown are typical composition limits for commonly used coated aluminum substrate alloys. Final certificates should be confirmed for each order.
| Alloy | Si % | Fe % | Cu % | Mn % | Mg % | Zn % | Al % |
|---|---|---|---|---|---|---|---|
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | Balance |
| 1060 | ≤0.25 | ≤0.35 | ≤0.05 | ≤0.03 | ≤0.03 | ≤0.05 | Balance |
| 1100 | Si + Fe ≤0.95 | Si + Fe ≤0.95 | 0.05-0.20 | ≤0.05 | - | ≤0.10 | Balance |
| 3003 | ≤0.60 | ≤0.70 | 0.05-0.20 | 1.0-1.5 | - | ≤0.10 | Balance |
| 3004 | ≤0.30 | ≤0.70 | ≤0.25 | 1.0-1.5 | 0.8-1.3 | ≤0.25 | Balance |
| 3105 | ≤0.60 | ≤0.70 | ≤0.30 | 0.30-0.80 | 0.20-0.80 | ≤0.40 | Balance |
| 5005 | ≤0.30 | ≤0.70 | ≤0.20 | ≤0.20 | 0.50-1.10 | ≤0.25 | Balance |
Fabrication and Application Benefits
The plate can be cut, bent, stamped, roll formed, routed, punched, riveted, and bonded when the correct temper and coating system are chosen. Softer tempers improve deep drawing and tight-radius bending, while harder tempers provide improved stiffness for flat panels and roofing profiles. Protective film is recommended where surface appearance must remain pristine through processing and installation.
| Application | Recommended Alloy and Temper | Preferred Coating | Design Benefit |
|---|---|---|---|
| Curtain wall cladding | 3003 H24, 5005 H34 | PVDF or FEVE | Flatness, color retention, facade durability |
| Roofing and rainwater systems | 3004 H26, 3105 H24 | HDPE, SMP, PVDF | Formability, weather resistance, low weight |
| Interior ceilings and wall panels | 3003 H24, 1100 H14 | PE or powder coating | Decorative finish and easy cleaning |
| ACP facing sheet | 3003 H16, 3105 H16 | PE or PVDF | Stable lamination and consistent color |
| Signage and display panels | 1100 H14, 3003 H14 | PE, PVDF, digital-printable finish | Smooth surface and vivid color options |
| Appliance and equipment covers | 1050 H14, 3003 H14 | PE or powder coating | Scratch resistance and clean visual presentation |
Color Matching, Inspection, and Packaging
Custom orders may be developed from RAL references, Pantone references, metallic color chips, physical samples, or approved production panels. Because gloss, lighting, viewing angle, substrate condition, and paint batch can influence appearance, final color approval should be based on a signed sample or agreed tolerance standard.
Routine inspection can include coating thickness, gloss, color difference, T-bend, impact resistance, pencil hardness, adhesion, solvent resistance, and salt-spray evaluation where required. Each plate is commonly protected with interleaving paper or film, then packed with moisture-resistant wrapping, edge guards, pallet support, and export-grade wooden reinforcement.
Custom color coated aluminum plate offers a practical balance of appearance, service life, fabrication efficiency, and design freedom. With the correct alloy, temper, pretreatment, and paint system, it becomes a reliable finish material for projects where color consistency and lightweight durability matter.
