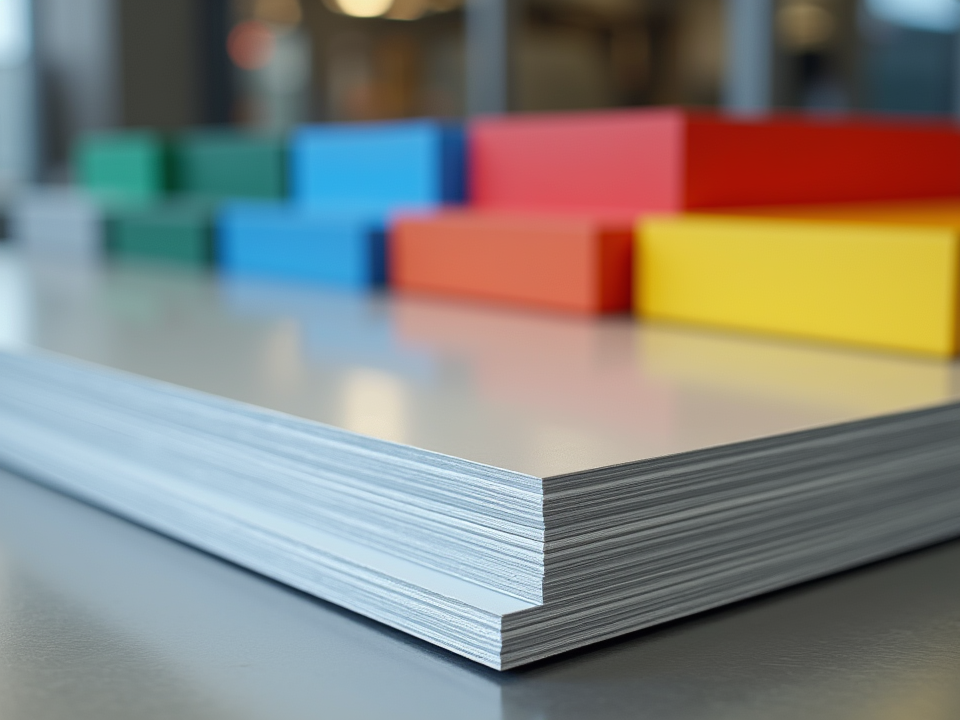

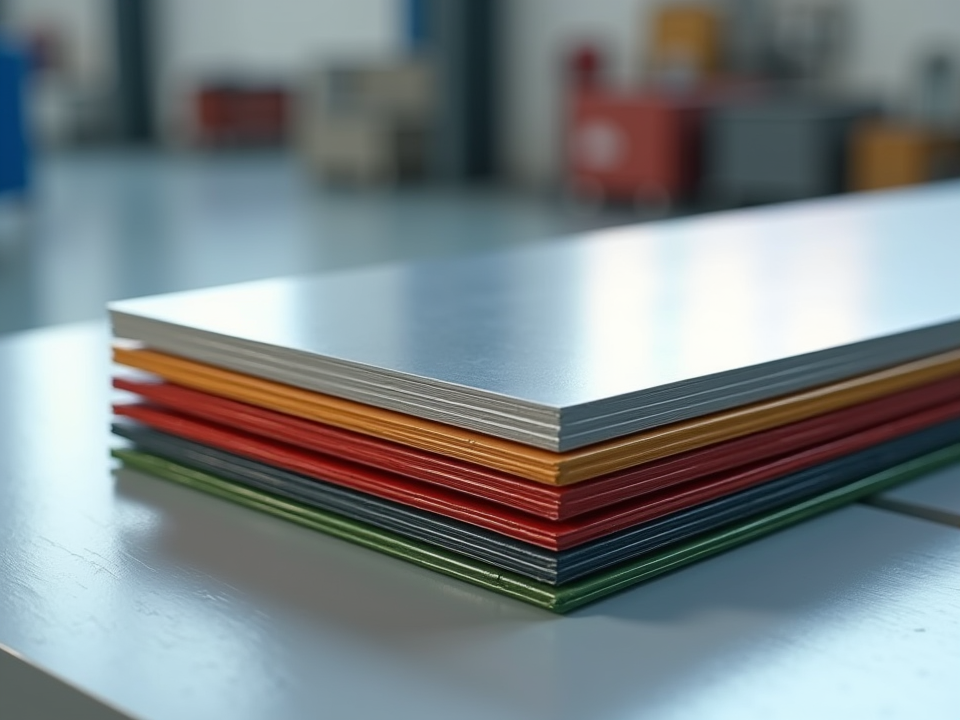

PVDF coated aluminum sheet is a premium color-coated aluminum product with excellent weather resistance and color stability. It is especially suitable for outdoor architectural applications where long service life is required.
Features
Excellent UV resistance and weather resistance
Strong coating adhesion and smooth surface
Good color retention for outdoor use
Available in RAL colors and customized colors
Applications
PVDF coated aluminum sheet is used for curtain walls, roofing systems, aluminum composite panels, facade cladding, ceiling panels, and exterior decorative panels.
| Item | Specification |
|---|---|
| Alloy | 1100, 3003, 3004, 3105, 5005 |
| Temper | H14, H24, H26, H44 |
| Thickness | 0.2 mm - 3.0 mm |
| Width | 800 mm - 1600 mm |
| Coating | PVDF, 2-coat or 3-coat |
| Coating Thickness | Top 20-30 μm, back 5-10 μm |
| Color | RAL color, wood grain, stone pattern, custom |
HAOMEI Aluminum CO., LTD. supplies PVDF coated aluminum sheet for architectural projects requiring high durability and attractive appearance.
