Copper Finish Brushed Aluminum Plate
Copper finish brushed aluminum plate delivers the rich, architectural character of copper while retaining aluminum's low weight, corrosion resistance, and practical fabrication benefits. The surface features fine, continuous brushing lines that soften reflected light and create a refined satin-metal appearance. A copper-toned coating, paint system, or anodized-color process provides the desired warm red-brown to bronze visual effect.
It is widely selected for interior wall cladding, elevator cabins, retail fixtures, appliance panels, signage, furniture trim, and decorative building components. Compared with solid copper, this material is easier to handle, less demanding on supporting structures, and less susceptible to the natural patina changes associated with exposed copper.
Material Construction and Surface Character
A copper finish brushed aluminum plate begins with a flat aluminum sheet or plate, commonly produced in 1060, 1100, 3003, or 5052 alloy. The face is mechanically brushed in one direction, forming a hairline grain. After cleaning and pretreatment, the brushed face receives a copper-color finish. Protective film is normally applied to reduce handling marks during cutting, bending, and installation.
| Layer or Process | Function | Customer Benefit |
|---|---|---|
| Aluminum substrate | Provides strength, formability, and low density | Lightweight panels with reliable processing performance |
| Hairline brushing | Produces fine linear surface texture | Satin appearance that helps disguise minor fingerprints and scuffs |
| Chemical pretreatment | Improves coating adhesion and corrosion resistance | More stable decorative finish |
| Copper-color coating or anodized finish | Creates copper, bronze, antique copper, or rose-copper tone | Warm premium aesthetic without solid copper weight |
| Protective film | Shields the decorative face during fabrication | Cleaner surface at installation |
The brushing direction should be specified before fabrication. For large wall panels, maintaining a single grain direction across adjacent sheets creates a more consistent visual rhythm. Copper shades can vary slightly between batches due to coating formulation, gloss level, lighting, and viewing angle, so projects requiring a close color match should use material from one production lot whenever possible.
Performance Benefits
| Feature | Practical Value |
|---|---|
| Low density | Aluminum weighs about one-third as much as copper, supporting easier transport and installation |
| Warm decorative tone | Recreates copper-inspired styling for hospitality, commercial, and residential spaces |
| Linear brushed grain | Adds depth while reducing the mirror-like glare of polished metal |
| Corrosion resistance | Aluminum substrate performs well in normal indoor and sheltered exterior environments |
| Fabrication flexibility | Suitable for shearing, CNC cutting, punching, folding, bonding, and panel fabrication |
| Cleanable surface | Routine dust and light soil can be removed with a soft cloth and mild neutral cleaner |
| Design consistency | Coil-coated or painted finishes offer repeatable color for coordinated panel systems |
For applications involving heavy outdoor exposure, marine air, chemicals, or frequent cleaning, finish selection is especially important. A high-performance PVDF coating, durable anodized surface, or specified clear protective layer can improve long-term appearance retention. Avoid using aggressive alkaline cleaners, abrasive pads, or solvent products that may dull or damage the decorative face.
Typical Applications
Copper finish brushed aluminum plate gives designers a metal surface with warmth rather than the cooler visual character of silver aluminum. It works particularly well where a project needs a premium accent material that remains practical to fabricate.
| Application Area | Typical Use |
|---|---|
| Interior architecture | Feature walls, column wraps, ceiling details, partition trims, door panels |
| Retail and hospitality | Reception desks, display systems, restaurant interiors, hotel lift lobbies |
| Elevator decoration | Cabin wall panels, control-panel surrounds, door cladding |
| Furniture and cabinetry | Cabinet fronts, table edging, wardrobe details, decorative inserts |
| Signage | Brand plaques, directional signs, display backboards, engraved panels |
| Appliances and equipment | Control housings, decorative covers, premium consumer-product panels |
| Building facades | Sheltered soffits, entrance details, rainscreen accents with suitable coating specification |

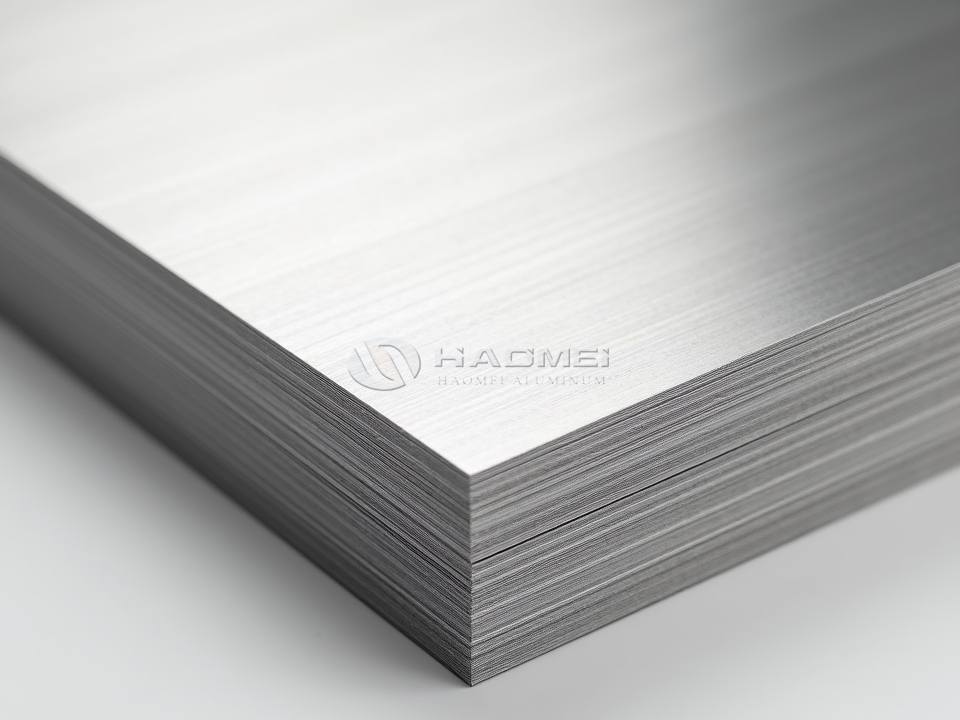

For projects needing a natural metallic grain in other color families, Brushed Aluminum Sheet options can also be supplied in silver, gold, black, champagne, or custom decorative tones.
Technical Specifications
Actual supply dimensions and tolerances can be tailored to project drawings, processing needs, and transport limits.
| Parameter | Standard Range | Custom Possibilities |
|---|---|---|
| Alloy | 1060, 1100, 3003, 5052 | Other compatible aluminum grades upon request |
| Temper | H14, H16, H18, H24, H32 | Selected according to forming requirement |
| Thickness | 0.30-6.00 mm | Heavier plate available for specialized fabrication |
| Width | 300-1,600 mm | Slitting to required coil or sheet width |
| Length | 500-6,000 mm | Cut-to-length sheets and panel blanks |
| Surface grain | Fine hairline, medium brush, cross brush | Grain direction and texture can be matched |
| Copper finish | Copper, antique copper, bronze, rose copper | Color sample matching subject to minimum order |
| Gloss level | Matte to satin | Specified by approved visual sample |
| Protective film | PE, laser PE, or custom film | Film thickness and adhesion selected by process |
| Flatness | Commercial decorative grade | Enhanced flatness available for panel applications |
Alloy and Temper Selection
The base alloy should be chosen according to the balance of formability, strength, corrosion resistance, and final use environment.
| Alloy | Recommended Tempers | Characteristics | Suitable Uses |
|---|---|---|---|
| 1060 | H14, H18 | High aluminum content, excellent workability, soft surface | Signage, trims, indoor decorative panels |
| 1100 | H14, H18 | Strong formability and good corrosion resistance | Light-duty cladding, appliance decoration |
| 3003 | H14, H24 | Manganese-alloyed grade with improved strength | Wall panels, furniture, general architectural work |
| 5052 | H32, H34 | Higher strength and very good corrosion resistance | Humid areas, transport interiors, demanding fabricated parts |
H14 and H24 tempers are commonly preferred when folding or shallow forming is required. H18 provides a firmer sheet for flatter decorative panels but has lower formability. For deep bends, tight radii, or complex presswork, confirm bend direction and minimum bend radius through sample testing before volume production.
Chemical Composition
The copper appearance is a surface finish; copper is not normally added as a principal alloying element in the aluminum substrate. Typical composition limits for commonly used base alloys are shown in percent by weight.
| Alloy | Si + Fe | Cu | Mn | Mg | Zn | Al |
|---|---|---|---|---|---|---|
| 1060 | 0.35 max | 0.05 max | 0.03 max | 0.03 max | 0.05 max | 99.60 min |
| 1100 | 0.95 max | 0.05-0.20 | 0.05 max | - | 0.10 max | 99.00 min |
| 3003 | 0.70 max | 0.05-0.20 | 1.00-1.50 | - | 0.10 max | Balance |
| 5052 | 0.45 max | 0.10 max | 0.10 max | 2.20-2.80 | 0.10 max | Balance |
Mechanical Properties
Values vary with thickness, temper, and production standard. The figures shown are common reference ranges rather than guaranteed inspection values.
| Alloy and Temper | Tensile Strength | Yield Strength | Elongation | Typical Forming Level |
|---|---|---|---|---|
| 1060-H14 | 95-135 MPa | 75 MPa min | 3-10% | Good |
| 1100-H14 | 110-145 MPa | 95 MPa min | 3-9% | Good |
| 3003-H14 | 130-170 MPa | 115 MPa min | 3-10% | Good |
| 5052-H32 | 195-255 MPa | 130 MPa min | 7-12% | Moderate to good |
Fabrication and Care Guidance
Copper finish brushed aluminum plate can be guillotine cut, laser cut with appropriate protective film, punched, routed, folded, and bonded to supporting panels. Use clean tooling and remove sharp burrs carefully to prevent scratching the finished face. When bending, position the visible surface and brushing direction according to the approved panel layout.
Store sheets indoors in a dry, ventilated location. Keep the protective film in place until final installation, but do not leave film exposed to intense sunlight or high heat for extended periods. For cleaning, use water, a soft microfiber cloth, and mild pH-neutral detergent. Rinse and dry promptly to prevent residue marks.
Copper finish brushed aluminum plate is an efficient decorative solution for projects seeking the depth of copper color, the tactile appeal of hairline metal, and the lightweight performance of aluminum.
