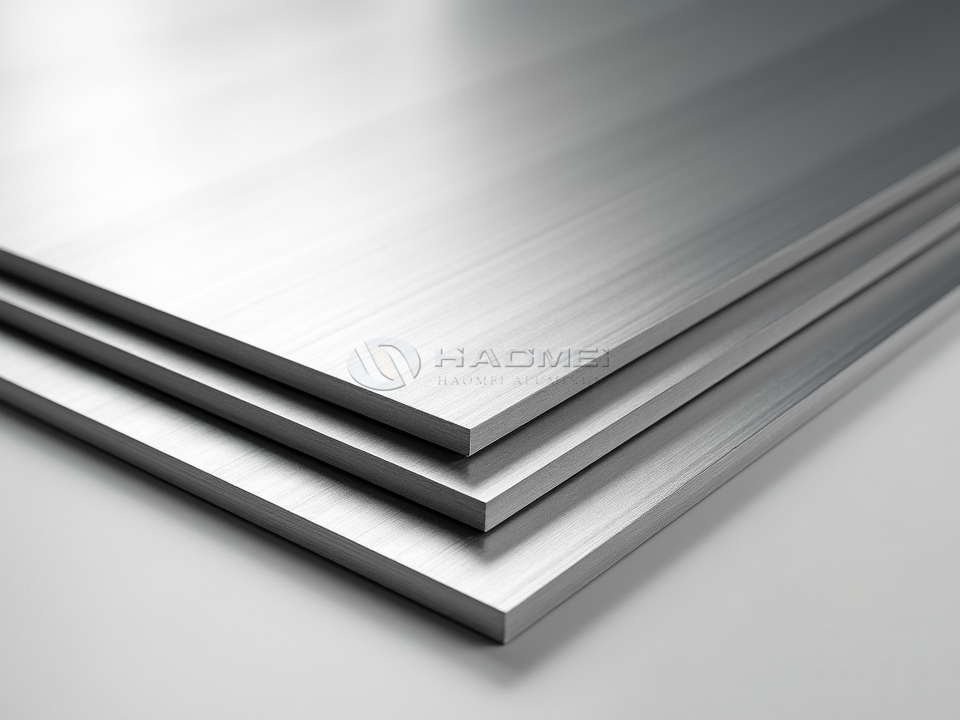

Matte Brushed Aluminum Finish Plate
Matte brushed aluminum finish plate combines the practical advantages of aluminum with a refined, low-glare linear texture. The surface is processed with controlled abrasive brushing to create fine, continuous grain lines that soften reflected light, conceal minor handling marks, and give panels a modern metallic character.
It is widely selected for architectural trims, elevator interiors, retail fixtures, kitchen equipment, appliance panels, signage, transportation components, and decorative fabrication. Compared with mirror-polished aluminum, the matte brushed surface feels calmer and is more forgiving in high-touch environments.
Surface Character and Product Benefits
The defining feature of a matte brushed aluminum finish plate is its directional hairline pattern. Fine abrasive belts or brushes create a uniform satin effect across the sheet. The finish can be supplied in natural silver aluminum or combined with anodizing, painting, laminating, or PVD-style decorative treatments for black, champagne, gold, and other architectural colors.
| Performance Attribute | Matte Brushed Aluminum Finish Plate Benefit |
|---|---|
| Visual effect | Soft metallic appearance with low reflectivity and orderly linear grain |
| Scratch masking | Fine surface texture makes light scuffs less noticeable than mirror finishes |
| Weight | Approximately one-third the density of steel, supporting lighter assemblies |
| Corrosion resistance | Natural oxide layer provides protection; anodizing enhances durability |
| Fabrication | Suitable for cutting, bending, punching, drilling, riveting, and bonding |
| Hygiene and cleaning | Smooth non-porous surface can be wiped clean with mild detergent |
| Design flexibility | Available in multiple alloys, thicknesses, grain directions, and color finishes |
A brushed finish is directional, so panel orientation should be planned before fabrication. Keeping the grain aligned across adjacent panels creates a clean, continuous appearance in wall cladding, elevator doors, cabinet fronts, and equipment housings.
Available Alloy Options
Alloy selection determines formability, strength, corrosion behavior, and final use suitability. Pure aluminum grades are preferred when deep drawing or high reflectivity is important. Magnesium-containing 5052 alloy is a stronger choice for humid, marine-adjacent, or frequently handled installations.
| Alloy | Typical Temper | Characteristics | Recommended Uses |
|---|---|---|---|
| 1060 | H14, H24 | High aluminum purity, very good formability, good conductivity | Nameplates, lamp reflectors, decorative trim, interior panels |
| 1100 | H14, H24 | Excellent workability and corrosion resistance | Kitchen panels, signage, appliance facings, interior decoration |
| 3003 | H14, H24 | Improved strength with good forming performance | Roofing trims, wall panels, general fabrication |
| 5052 | H32, H34 | Higher strength and excellent corrosion resistance | Elevator panels, transport interiors, cabinet systems, marine-adjacent components |

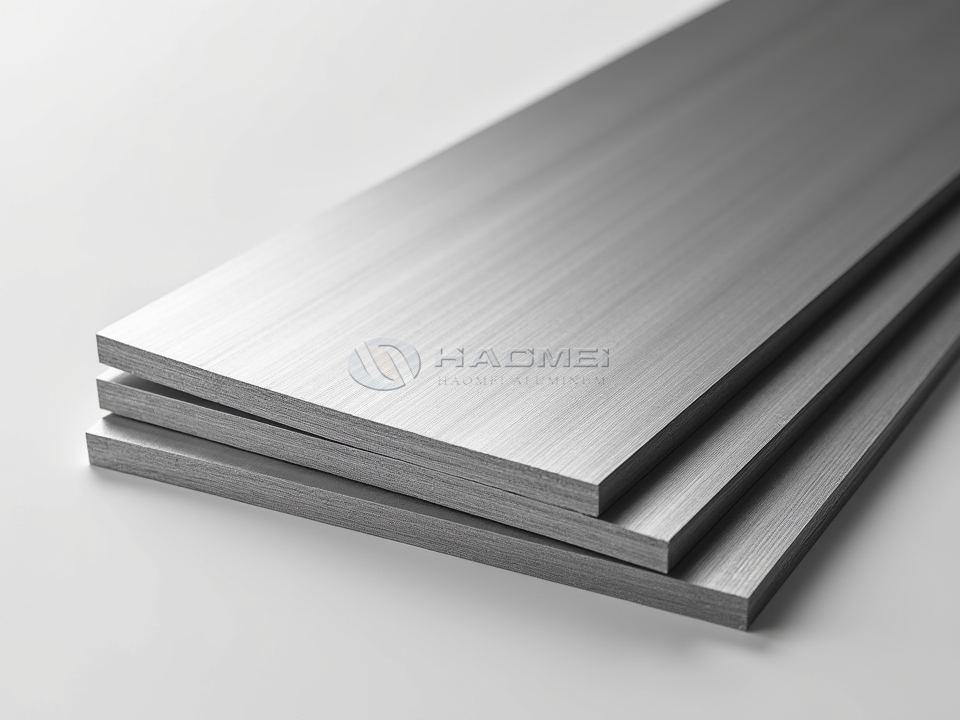

For projects requiring stronger sheet performance, 5052 Brushed Aluminum Sheet provides a durable balance of decorative quality, bendability, and resistance to moisture exposure.
Typical Chemical Composition
The values shown are representative maximum or nominal limits commonly used for standard aluminum sheet production. Exact requirements should be confirmed against the requested alloy standard and mill certificate.
| Element, wt.% | 1060 | 1100 | 3003 | 5052 |
|---|---|---|---|---|
| Aluminum, Al | 99.60 min | 99.00 min | Balance | Balance |
| Silicon, Si | 0.25 max | Si + Fe 0.95 max | 0.60 max | 0.25 max |
| Iron, Fe | 0.35 max | Si + Fe 0.95 max | 0.70 max | 0.40 max |
| Copper, Cu | 0.05 max | 0.05-0.20 | 0.05-0.20 | 0.10 max |
| Manganese, Mn | 0.03 max | 0.05 max | 1.0-1.5 | 0.10 max |
| Magnesium, Mg | 0.03 max | - | - | 2.2-2.8 |
| Chromium, Cr | - | - | - | 0.15-0.35 |
| Zinc, Zn | 0.05 max | 0.10 max | 0.10 max | 0.10 max |
Technical Specifications
Matte brushed aluminum finish plate can be ordered as sheet, coil, cut-to-length blanks, or fabricated panels. Protective film is strongly recommended when the material will undergo forming, installation, or extended handling.
| Specification | Common Supply Range |
|---|---|
| Thickness | 0.30-6.00 mm |
| Standard width | 1,000 mm, 1,220 mm, 1,250 mm, 1,500 mm |
| Standard length | 2,000 mm, 2,440 mm, 3,000 mm, or customized |
| Surface grain | Hairline, short grain, long grain, cross-brushed, satin |
| Grain direction | Lengthwise, widthwise, or specified by drawing |
| Surface color | Natural silver, black, gold, champagne, bronze, custom coated colors |
| Protective film | PE, laser PVC, or customer-specified temporary film |
| Flatness | Controlled according to thickness, alloy, temper, and panel size |
| Edge condition | Mill edge, trimmed edge, slit edge, or deburred cut edge |
Mechanical Performance
Mechanical properties vary with alloy, temper, thickness, and processing route. The following figures provide useful reference values for common decorative sheet selections.
| Alloy and Temper | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Forming Behavior |
|---|---|---|---|---|
| 1060-H14 | 95-135 | 75 min | 5 min | Excellent for light bending and shaping |
| 1100-H14 | 95-135 | 75 min | 5 min | Excellent for general decorative forming |
| 3003-H14 | 120-160 | 110 min | 3 min | Good strength with practical bendability |
| 5052-H32 | 195-245 | 130 min | 12 min | Strong, durable, and suitable for formed panels |
Applications That Benefit From a Matte Brushed Finish
Matte brushed aluminum finish plate performs especially well where visual consistency and service durability must work together. In elevator cabins, the low-glare surface supports a premium appearance while resisting the visual impact of routine contact. In kitchen cabinetry and commercial food-service equipment, the finish brings a clean industrial style and is easy to maintain.
| Application Area | Typical Product Requirement | Suitable Alloy Choice |
|---|---|---|

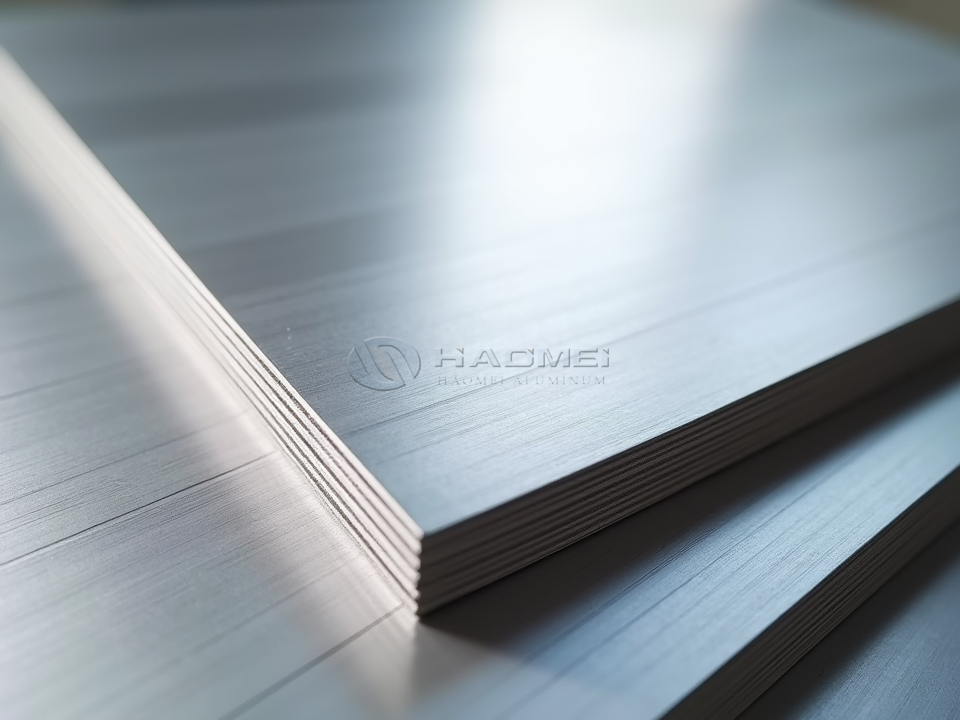

| Elevator wall panels and doors | Scratch-masking finish, stable flatness, strong panel appearance | 5052, 3003 |
| Kitchen cabinets and appliance facings | Cleanable surface, decorative grain, easy fabrication | 1100, 3003, 5052 |
| Retail displays and fixtures | Modern appearance, lightweight construction, easy cutting | 1060, 1100, 3003 |
| Signage and nameplates | Fine brushing, printing compatibility, corrosion resistance | 1060, 1100 |
| Interior wall cladding | Consistent grain alignment, color options, low glare | 3003, 5052 |
| Transport interiors | Vibration resistance, lower weight, durable surface | 5052 |
For standard silver architectural surfaces, Silver Brushed Aluminum Sheet offers a versatile finish that pairs well with glass, wood, stone, and painted metal.
Fabrication and Care Guidance
Use clean tools, non-marking handling surfaces, and protective gloves to preserve the brushed face. When bending, position the grain direction according to the desired visual result and bend radius. Film should remain in place through cutting and installation, then be removed promptly after the work is complete to avoid adhesive residue.
For routine care, wipe with a soft microfiber cloth and neutral cleaner. Avoid strong alkaline cleaners, steel wool, coarse abrasives, and chloride-rich chemicals, as these may damage the oxide layer or alter the brushed pattern. For exterior or high-humidity use, anodized or coated brushed plate provides added protection and improved color stability.
Value for Decorative Metal Projects
Matte brushed aluminum finish plate delivers a polished visual identity without the excessive glare of mirror metal. Its light weight reduces structural demand, its linear texture supports contemporary design, and its alloy options allow the material to be matched to indoor, outdoor, commercial, or industrial service conditions. With the correct thickness, temper, protective film, and finish direction specified, it becomes a reliable material for panels that must look composed long after installation.
