High Gloss Coated Aluminum Board
High gloss coated aluminum board is a pre-finished aluminum panel material designed for projects that need a brilliant surface, stable color, and dependable sheet performance. It combines an aluminum alloy substrate with a high-gloss coating system, creating a smooth reflective finish suitable for decorative, commercial, and industrial use.
Compared with painted steel or plastic panels, high gloss coated aluminum board offers lower weight, better corrosion resistance, and easier forming. Compared with standard Coated Aluminum Sheet, the gloss level is controlled more tightly to deliver a sharper visual effect for premium displays, ceilings, cabinets, wall panels, and branded environments.
Product Character
The product is built around three working layers: an aluminum substrate, a conversion treatment layer, and a decorative coating film. The substrate provides strength and formability, while the coating gives color, gloss, stain resistance, and weather protection.
| Item | Typical Value | Customer Benefit |
|---|---|---|
| Surface gloss at 60° | 80-95 GU | Bright, reflective appearance |
| Common alloy choices | 1100, 3003, 3004, 3105, 5052 | Match forming, strength, and corrosion needs |
| Coating options | PE, HDPE, PVDF, PU | Indoor to outdoor service range |
| Finish style | Solid color, metallic, pearl, custom color | Flexible design matching |
| Product form | Sheet, coil, cut-to-size board | Convenient for fabrication lines |
| Typical surface | Smooth, glossy, color-coated | Ready for installation or lamination |
A high gloss surface makes colors look deeper and cleaner. White appears brighter, black appears richer, and metallic shades show more depth. This makes the board especially effective where lighting, brand image, and customer perception matter.
Chemical Composition of Common Aluminum Substrates
The final alloy is selected according to strength, bending radius, corrosion environment, and forming method. The values shown are typical reference ranges by alloy standard and may vary by confirmed specification.
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Al |
|---|---|---|---|---|---|---|---|
| 1100 | Si+Fe ≤ 0.95 | Si+Fe ≤ 0.95 | 0.05-0.20 | ≤ 0.05 | - | ≤ 0.10 | ≥ 99.00 |
| 3003 | ≤ 0.60 | ≤ 0.70 | 0.05-0.20 | 1.00-1.50 | - | ≤ 0.10 | Balance |
| 3105 | ≤ 0.60 | ≤ 0.70 | ≤ 0.30 | 0.30-0.80 | 0.20-0.80 | ≤ 0.40 | Balance |
| 5052 | ≤ 0.25 | ≤ 0.40 | ≤ 0.10 | ≤ 0.10 | 2.20-2.80 | ≤ 0.10 | Balance |
For indoor decorative boards, 1100 and 3003 are often preferred because they form easily and offer a clean surface. For humid, coastal, or higher-strength applications, 5052 can be selected for its magnesium content and improved corrosion behavior.
Technical Specifications
| Parameter | Standard Range | Notes |
|---|---|---|
| Thickness | 0.20-3.00 mm | Thicker gauges available by inquiry |
| Width | 600-1600 mm | Coil or sheet production dependent |
| Length | 1000-6000 mm | Cut-to-size panels can reduce waste |
| Coating thickness | 15-35 μm | Depends on PE, PVDF, or custom system |
| Gloss level | 80-95 GU | Measured at 60° angle |
| Color tolerance | ΔE ≤ 1.5 typical | Project color matching recommended |
| Pencil hardness | HB-2H | Based on coating type |
| T-bend | 0T-2T | Alloy and thickness dependent |
| Impact resistance | ≥ 50 kg.cm | Typical for qualified coating film |
| Operating temperature | -40°C to 80°C | Higher limits depend on coating resin |
Performance in Real Use
High gloss coated aluminum board performs well because the finish is produced under controlled coil-coating or sheet-coating conditions. Paint thickness, curing temperature, color uniformity, and surface leveling are managed before the material reaches the fabricator. This reduces the uncertainty of spray painting after fabrication.
| Performance Area | Expected Result | Practical Meaning |
|---|---|---|
| Corrosion resistance | Strong protection against moisture and mild chemicals | Longer service life than bare aluminum |
| UV resistance | Good with PE, excellent with PVDF | Outdoor color stability can be specified |
| Cleanability | Smooth, non-porous finish | Dust, fingerprints, and stains wipe off more easily |
| Formability | Suitable for cutting, bending, punching, grooving | Efficient workshop processing |
| Weight advantage | About one-third the density of steel | Easier handling and lighter structures |
| Fire behavior | Metal substrate does not support combustion | Useful for architectural panel systems |

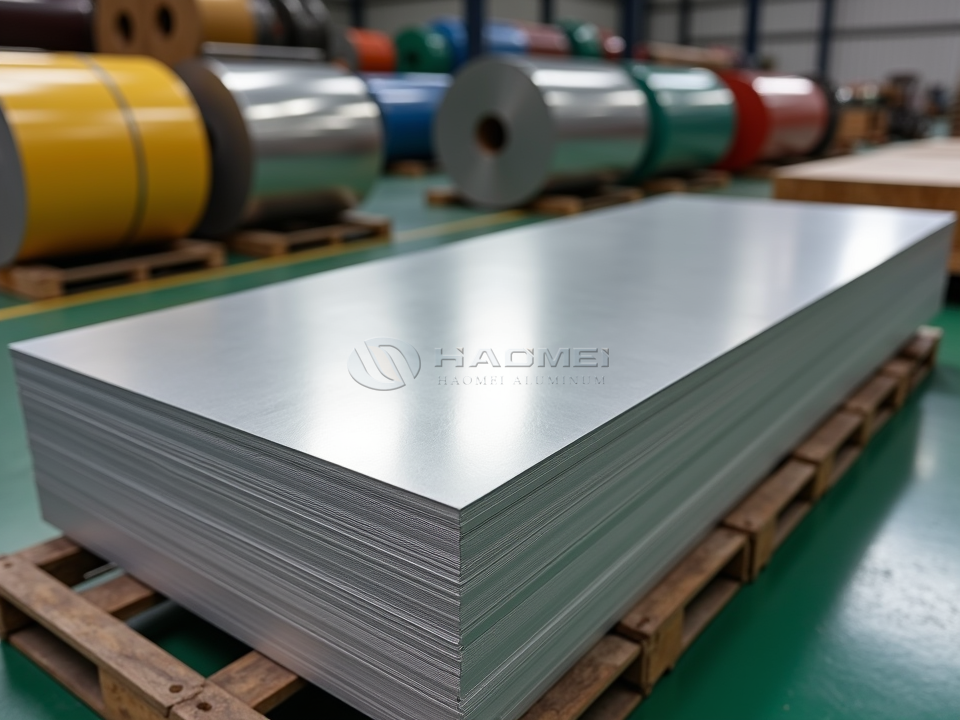

For exterior facades, canopy panels, and long-life architectural work, a fluorocarbon coating is often selected. A premium PVDF Coated Aluminum Sheet finish improves color retention, chalking resistance, and weather durability in demanding climates.
Main Features at a Glance
| Feature | Why It Matters |
|---|---|
| High reflectivity | Creates a modern, polished, premium appearance |
| Stable color | Supports brand consistency across multiple batches |
| Lightweight metal base | Reduces transportation and installation burden |
| Good bending performance | Works with common fabrication equipment |
| Protective coating film | Helps resist scratches, stains, oxidation, and humidity |
| Wide color range | Suitable for retail, furniture, ceiling, and wall designs |
The glossy coating also improves visual depth. In retail spaces, this can make product displays look cleaner and more attractive. In furniture and cabinet production, it gives a lacquer-like effect while retaining the strength and dimensional stability of aluminum.
Application Fields
High gloss coated aluminum board is used where appearance and processing efficiency need to work together. It can be cut, routed, punched, folded, bonded, or laminated, depending on project requirements.
| Application | Recommended Thickness | Suggested Coating | Reason for Use |
|---|---|---|---|
| Interior wall panels | 0.6-1.5 mm | PE or PU | Bright color, easy cleaning |
| Signage and shopfronts | 0.8-2.0 mm | PE or PVDF | Strong visual impact |
| Ceiling panels | 0.5-1.2 mm | PE | Light weight and clean finish |
| Furniture and cabinets | 0.6-1.5 mm | High gloss PE or PU | Smooth decorative surface |
| Elevator interiors | 0.8-2.0 mm | PU or PVDF | Durable, premium appearance |
| Appliance panels | 0.4-1.2 mm | PE or HDPE | Formable and color-stable |
| Composite panel skins | 0.2-0.5 mm | PE or PVDF | Suitable for lamination |
Benefits for Fabricators and End Users
For fabricators, the main value is consistency. The material arrives with a finished surface, so production can move directly into cutting, forming, lamination, or assembly. This lowers paint-room dependence, shortens delivery time, and improves repeatability from batch to batch.
For end users, the board offers a bright, easy-care surface with long service potential. The aluminum base resists rust, while the coating protects against daily wear and environmental exposure. In commercial spaces, this means less maintenance and a cleaner appearance over time.
The product also supports design flexibility. Gloss level, color, alloy, thickness, and protective film can be adjusted to match architectural or industrial needs. For projects requiring special colors, trial samples should be checked under actual lighting because high gloss surfaces reflect surrounding light more strongly than matte finishes.
Selection Notes
| Project Condition | Recommended Choice |
|---|---|
| Indoor dry environment | PE high gloss coating on 1100 or 3003 alloy |
| Outdoor architectural use | PVDF coating on 3003, 3105, or 5052 alloy |
| Frequent bending | Softer temper such as H14 or H24 |
| Higher dent resistance | 3003, 3105, or 5052 with suitable thickness |
| Premium decorative surface | Tight gloss tolerance and protective peel film |
| Coastal or humid location | 5052 substrate with PVDF coating |
Handling and Maintenance
During fabrication, keep the protective film in place until final installation when possible. Avoid dragging sheets across each other, and use clean gloves to reduce fingerprints. For cleaning, use soft cloths with neutral detergent and water. Strong alkaline cleaners, abrasive pads, and aggressive solvents should be avoided because they may reduce gloss or damage the coating film.
Why This Material Adds Value
High gloss coated aluminum board gives designers a vivid surface and gives fabricators a stable, ready-to-use material. Its combination of light weight, corrosion resistance, attractive gloss, and easy processing makes it a practical choice for modern interiors, commercial branding, and durable decorative panels. When the correct alloy and coating system are selected, it delivers both visual appeal and reliable long-term performance.
